[코드로 배우는 스프링 웹 프로젝트] java spring MySQL 연동 방법

1. MySQL 데이터 베이스 및 테이블 생성

create database samplespring_mvc;

use samplespring_mvc;

create table book (
	book_id int unsigned not null auto_increment primary key,
    title varchar(200) not null,
    category varchar(200) not null default '',
    price int null,
    insert_date datetime not null default now()
) collate='utf8mb4_general_ci';

desc book;





2. pom.xml에 DB 연결을 위한 내용 추가

<?xml version="1.0" encoding="UTF-8"?>
	... (생략) ...
	<dependencies>
		... (생략) ...
		<!-- Servlet -->
        ... (생략) ...
    	<!-- 내용 추가 -->
		<!-- database -->
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.4</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>2.0.4</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.apache.commons/commons-dbcp2 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-dbcp2</artifactId>
			<version>2.7.0</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.bgee.log4jdbc-log4j2/log4jdbc-log4j2-jdbc -->
		<dependency>
			<groupId>org.bgee.log4jdbc-log4j2</groupId>
			<artifactId>log4jdbc-log4j2-jdbc4</artifactId>
			<version>1.16</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>8.0.32</version>
		</dependency>

		<!-- Test -->
       ... (생략) ...
	</dependencies>
    ... (생략) ...
</project>





3. root-context.xml 내용 수정 (src → main → webapp → WEB-INF → spring → root-context.xml)

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	...(생략)...
	<!-- 내용 추가 -->
	<!-- for mysql -->
	<bean id="dataSource"
	class="org.apache.commons.dbcp2.BasicDataSource"
	destroy-method="close">
	<property name="driverClassName"
	value="com.mysql.cj.jdbc.Driver" />
	<property name="url"
	value="jdbc:mysql://localhost:3306/samplespring_mvc?serverTimezone=UTC&amp;useSSL=false&amp;
	useUnicode=true&amp;characterEncoding=UTF-8" />
	<property name="username" value="sampleuser" />
	<property name="password" value="1234" />
	</bean>

	<bean id="sqlSessionFactory"
	class="org.mybatis.spring.SqlSessionFactoryBean">
	<property name="dataSource" ref="dataSource" />
	<property name="mapperLocations" value="classpath:/sqlmap/**/*_SQL.xml" />
	</bean>

	<bean id="sqlSessionTemplate"
	class="org.mybatis.spring.SqlSessionTemplate">
	<constructor-arg index="0" ref="sqlSessionFactory" />
	</bean>

</beans>





4. MySQL에서 사용자 권한 부여하기(Users and Privileges)

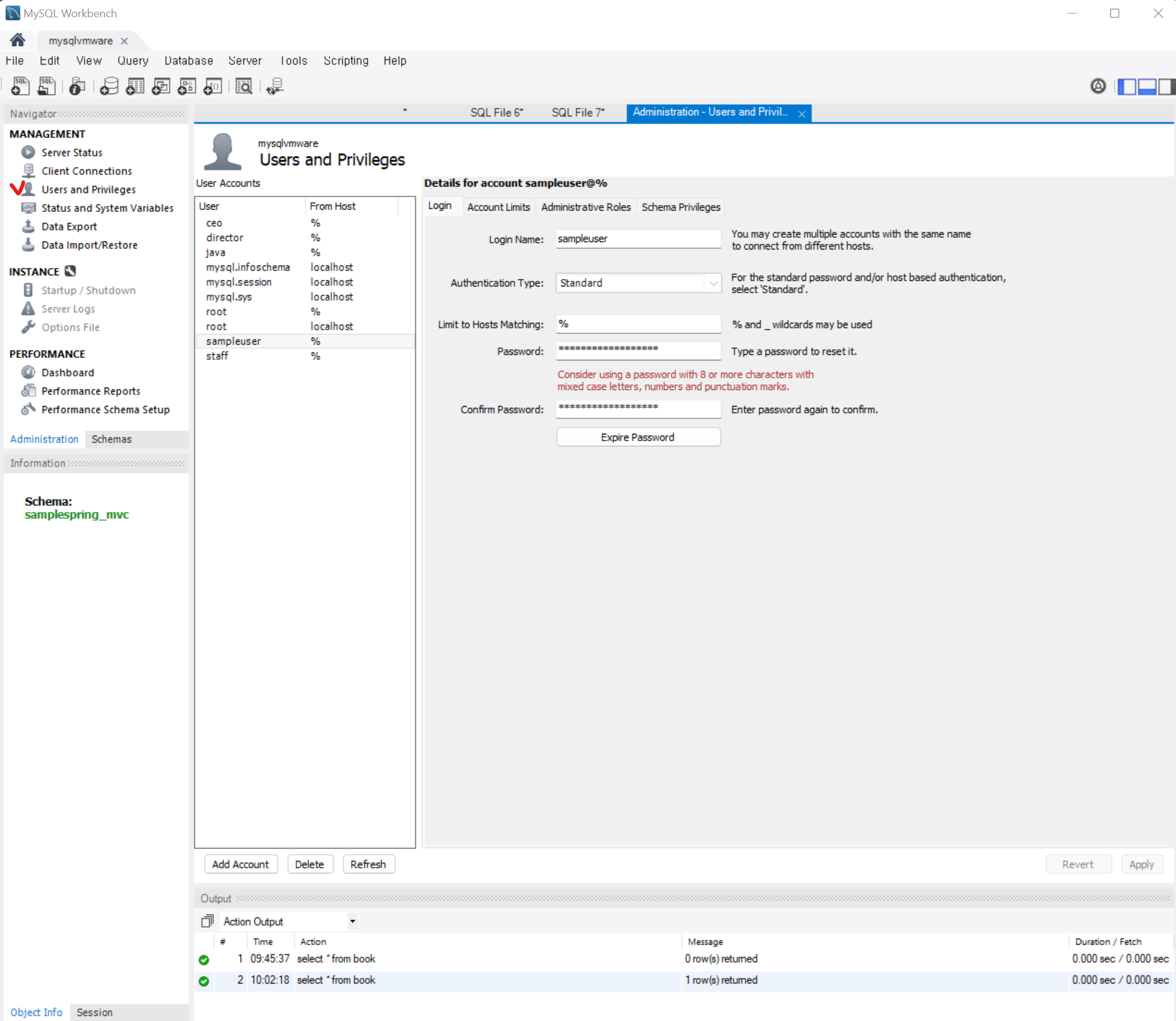

1. Login
(1) Login Name : sampleuser
(2) password : 1234
   → 비밀번호 설정하지 않으면 500 에러가 나타납니다.

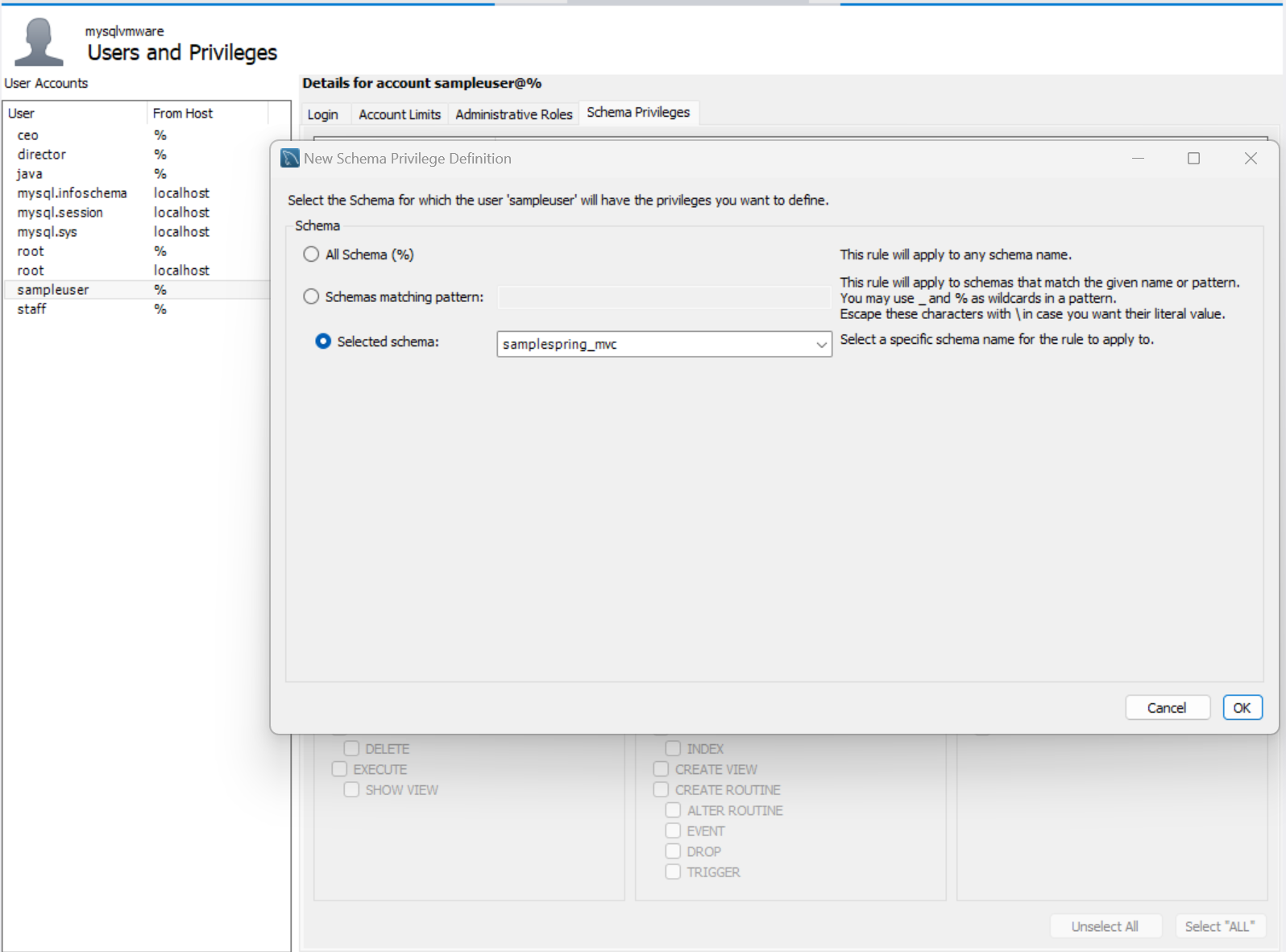

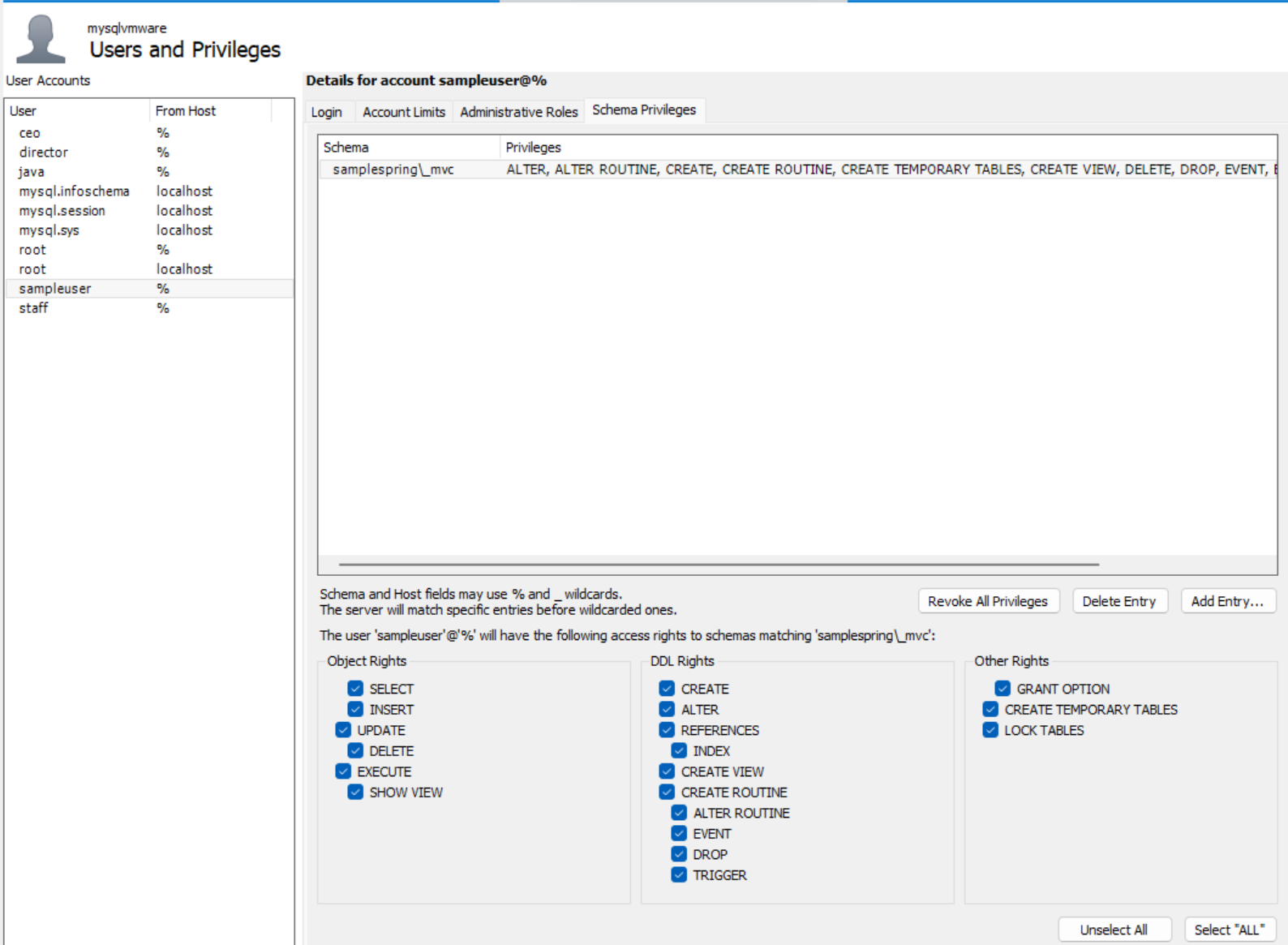

2. Schema Privileges → Add Entry → Selected schema : samplespring_mvc → 모든 조건 권한 부여(모두 체크)





DB에 연동을 하기 위해서 MySQL에서 DB와 Table을 생성했습니다.

또한 DB와 연결하기 위한 xml 파일 내용들을 수정하고 사용자 권한을 부여했습니다.



이렇게하면 기본 셋팅은 완료가 되네요!!
